200A, Hinged CT, 1.0″ (25mm) window, 3m Leads

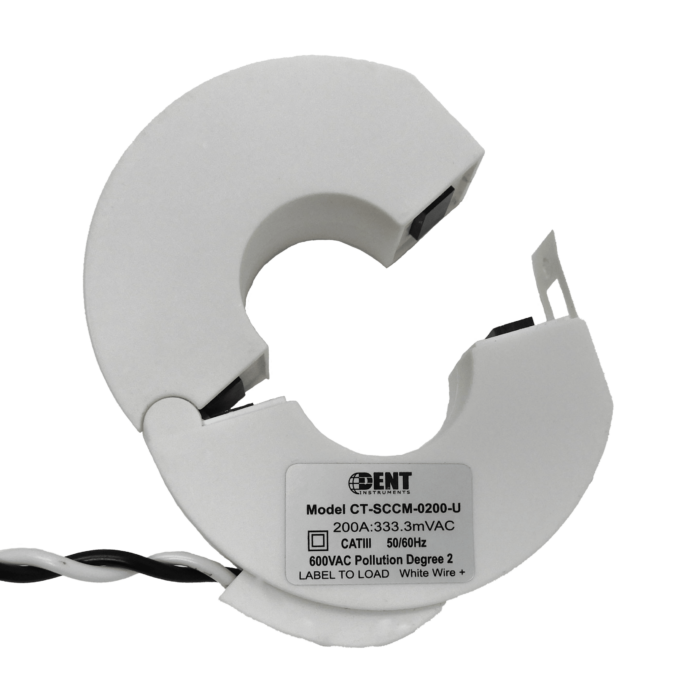

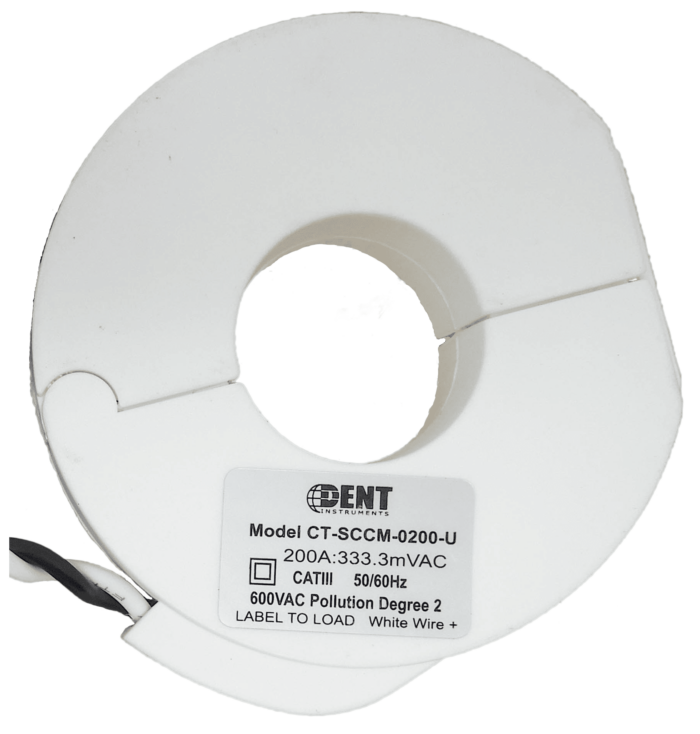

200A Split Core Toroidal Hinged Current Transformer
$82.00
Description
DENT’s Split Core Toroidal Hinged Current Transformers are designed for easy installation over existing electrical power lines without requiring the line or load to be disconnected. These CTs offer high accuracy and are ideal for a variety of applications including building automation, tenant submetering, performance verification, energy management, and new technology assessment.

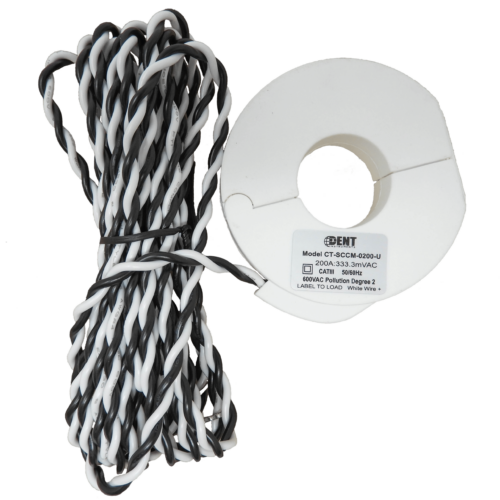

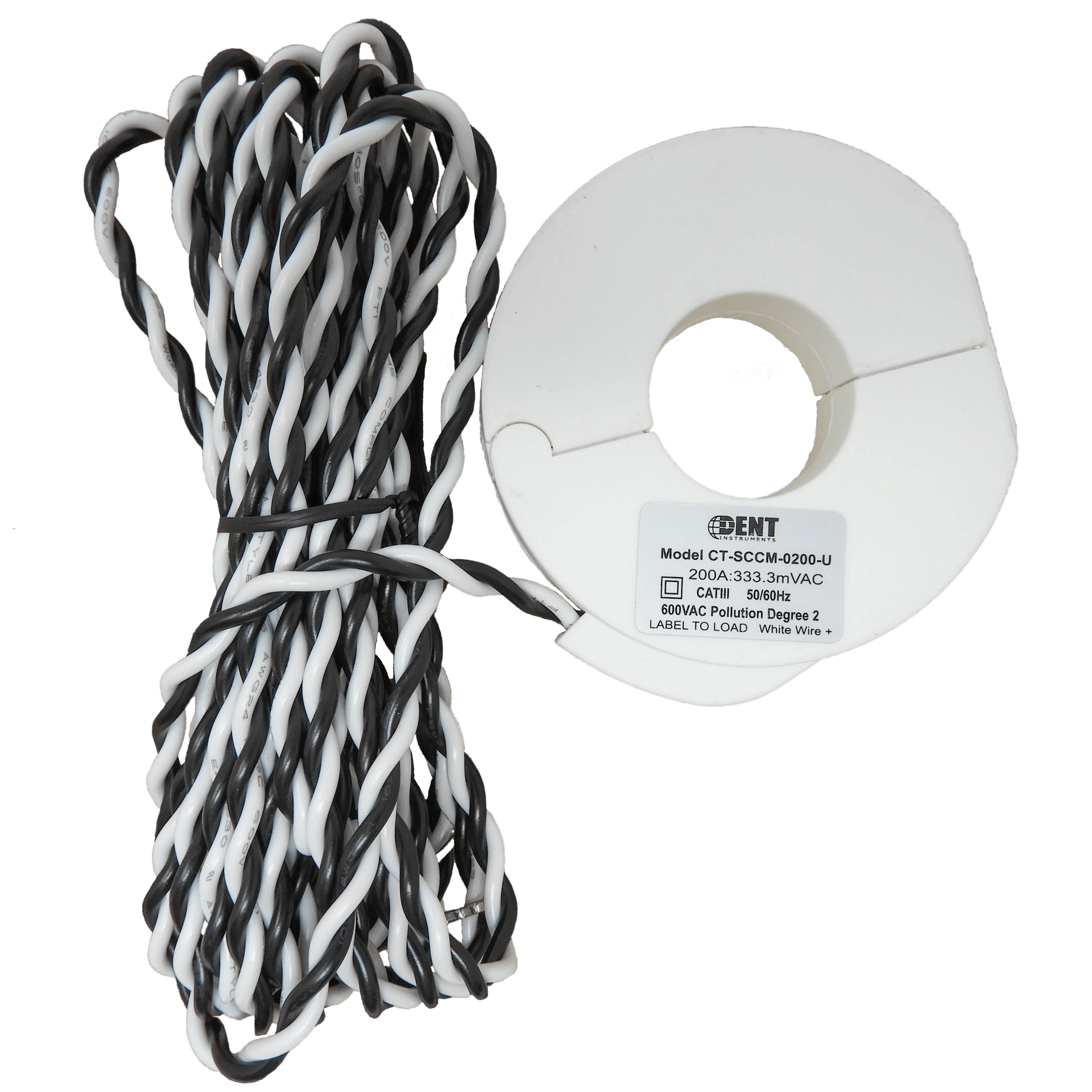

The Split Core Series CTs are cULus 2808 listed as recognized components, CE listed, RoHS compliant, and are 600V CAT III rated devices. They are available for current inputs up to 200 Amps with 3M (9.8′) long, 24 AWG twisted pair leads.
All DENT CTs are sold individually (not in sets).
All pricing in US Dollars and applies to US customers only. Pricing does not include duties and taxes. International customers, please click here to obtain a quote.
Additional information
| Weight | 0.35 lbs |
|---|---|
| Dimensions | 6 × 4 × 1 in |
| Current Rating | 200A |
| CT Style | Split Core |
| Form | Toroidal – Hinged |
| Window Size | 1.0" (25mm) |
| Current Range | 2-240A |
| Lead Length | 9.8' (3m) |
| Accuracy Grade | Standard |
| Accuracy Rating | ±0.5% error |
| CTEP Approval | Not Applicable |
Key Features
- Window Size: 1.0″ (25mm)
- Output is 333.3mV at rated current
- Internal precision burden resistor across secondary
- 3M (8′) twisted pair leads standard, terminated in ferrule for easy connection to all DENT meters.
- Typical accuracy is +/- 1% (measured from 10% to 130%)
- Core blades are shrouded for protection during installation
- Core is interleaved at joints for accuracy
- cULus Listed
- CE Mark
Part Numbers
All DENT CTs are sold individually (not in sets).
| Description | Amp Range | Part Number |
| 200A Split Core Toroidal Hinged CT | 2 – 240A | CT-SCCM-0200-U |
