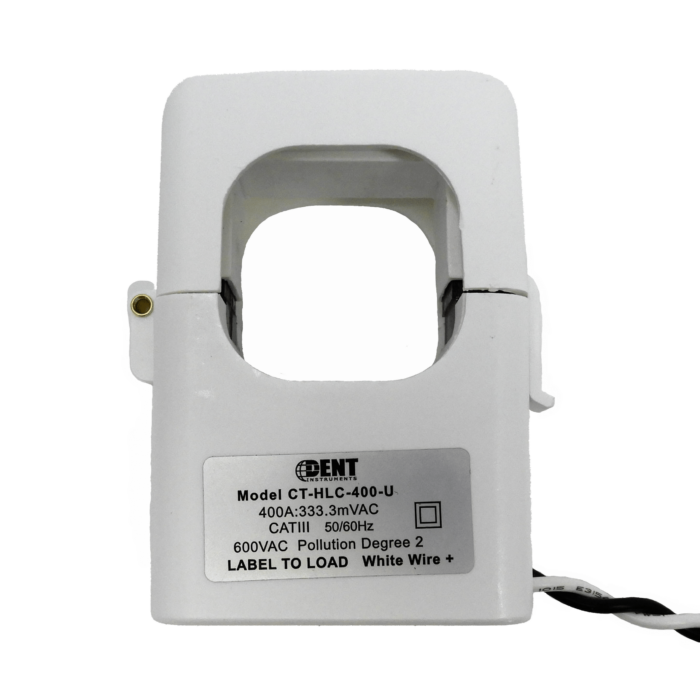

400A Split Core Rectangular Hinged Current Transformer

400A Split Core Rectangular Hinged Current Transformer

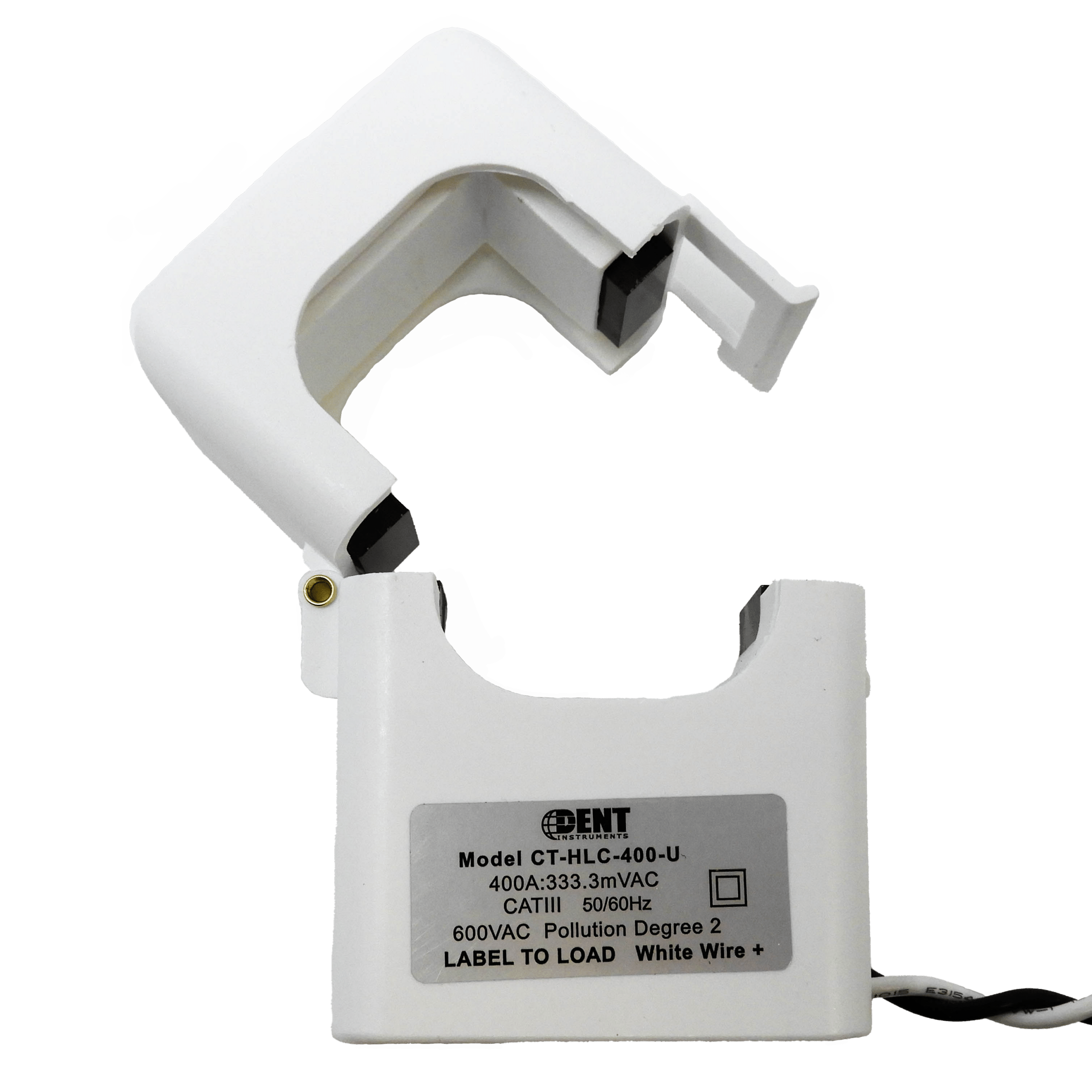

400A Split Core Rectangular Hinged Current Transformer - Image 2

$94.00

SKU: CTHLC0400U Category:

Description

DENT’s Split Core Rectangular Hinged Current Transformers are designed for easy installation over existing high-current loads without requiring a disconnect. These CTs offer high accuracy and are ideal for a variety of applications including building automation, tenant submetering, performance verification, energy management, and new technology assessment.
DENT’s energy monitoring components are used for a variety of applications including building automation, tenant submetering, performance verification, energy management, and new technology assessment.

The Split Core Series CTs are cULus 2808 listed as recognized components, CE listed, RoHS compliant, and are 600V CAT III rated devices. They are available for current inputs up to 400 Amps with 3M (9.8′) long, 22 AWG twisted pair leads.

All DENT CTs are sold individually (not in sets).

All pricing in US Dollars and applies to US customers only. Pricing does not include duties and taxes. International customers, please click here to obtain a quote.

Additional information

Weight 1.25 lbs
Dimensions 11 × 8 × 5 in
Current Rating

400A
CT Style

Split Core
Form

Block- Hinged
Window Size

1.4" (36mm)
Current Range

4-400A
Accuracy Rating

±0.5% error
Lead Length

9.8' (3m)
Accuracy Grade

Standard
CTEP Approval

Not Applicable

Key Features

  • Window Size: 1.4″ (36mm)
  • Output is 333.3mV at rated current
  • Internal precision burden resistor across secondary
  • 3M (8′) twisted pair leads standard, terminated in ferrule for easy connection to all DENT meters.
  • Typical accuracy is +/- 1% (measured from 10% to 130%)
  • Core blades are shrouded for protection during installation
  • Core is interleaved at joints for accuracy
  • cULus Listed
  • CE Mark

Documents

Part Numbers

All DENT CTs are sold individually (not in sets).

Description Amp Range Part Number
400A Split Core Rectangular Hinged CT 4 – 400A CT-HLC-0400-U
