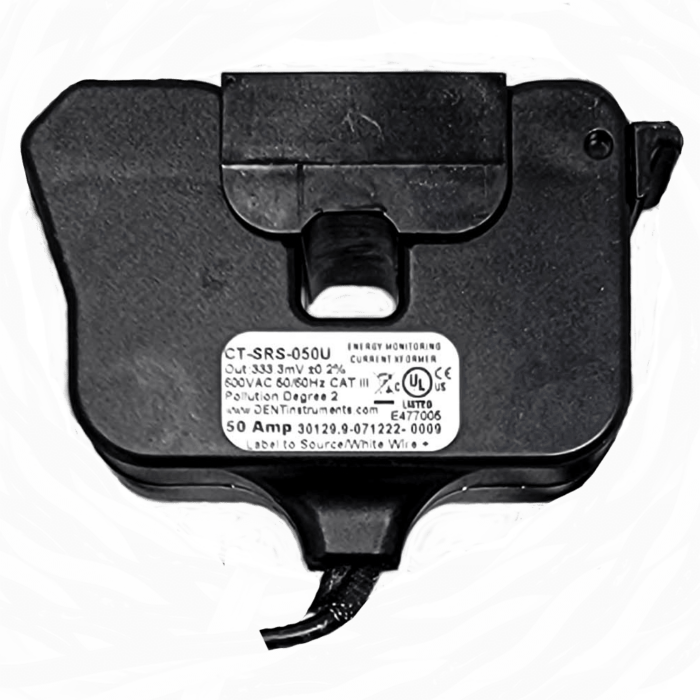

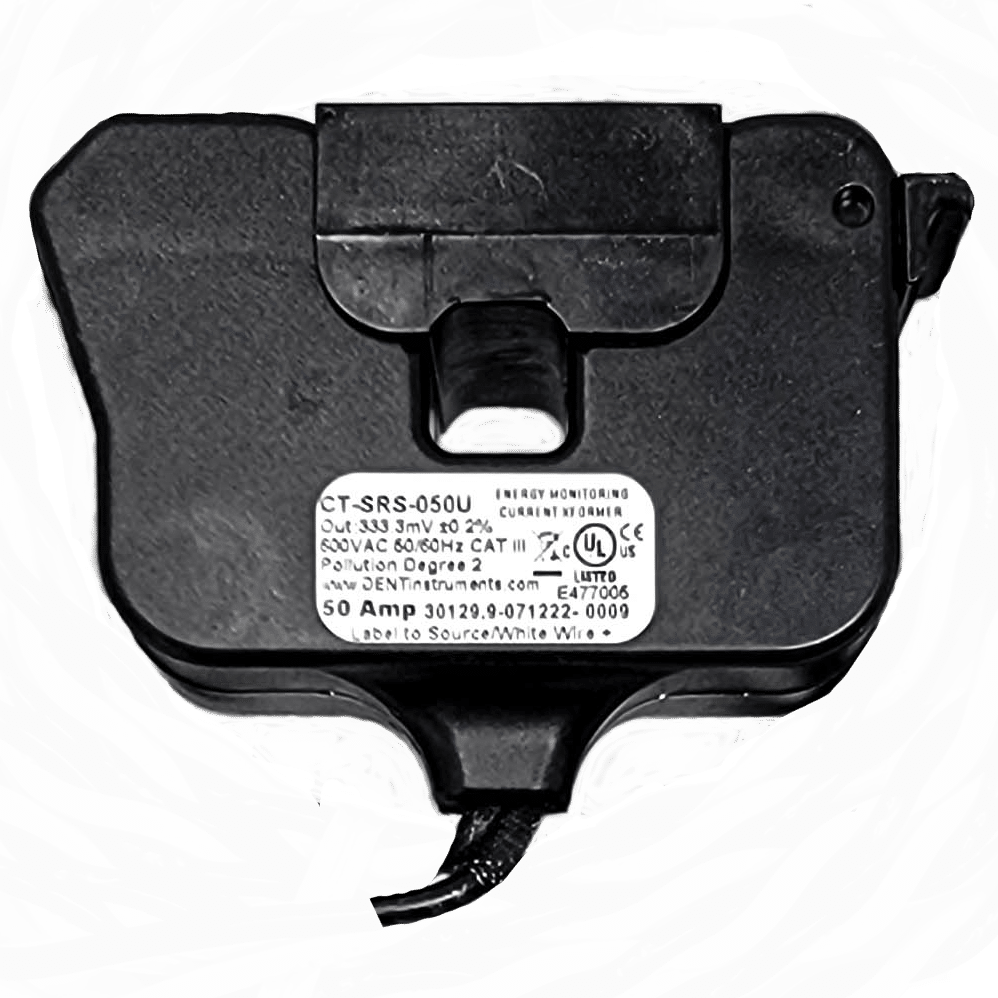

5A/50A Revenue Grade Split Core Rectangular Hinged Current Transformers

5A/50A Revenue Grade Split Core Rectangular Hinged Current Transformers
5A/50A Revenue Grade Split Core Rectangular Hinged Current Transformers - Image 2
5A/50A Revenue Grade Split Core Rectangular Hinged Current Transformers - Image 3
5A/50A Revenue Grade Split Core Rectangular Hinged Current Transformers - Image 4

$125.00

SKU: N/A Category: Tag:

Description

DENT’s SRS-Series hinged split-core current transformers are designed for Revenue Grade applications requiring very high accuracy. The SRS-Series is ideal for smaller current loads, featuring a 0.4″ window and supporting 5A and 50A sizes, making it perfect for energy & demand metering, tenant submetering, and load surveys.

Ideal for use with revenue grade ANSI C12 Class meters, such as the PowerScout, the revenue grade performance of these CTs meets or exceeds IEC 61869-2 Class 0.2; IEC 60044-1 Class 0.3; and IEEE C57.13 Class 0.3. The SRS Series CTs are UL2808 and CSA C22.2 No. 61010-1 listed as stand-alone products, CE listed, RoHS compliant, and are 600V CAT III rated devices.

They are available for current inputs of 5 and 50 Amps with 2.4 M (8′), 18 AWG MTW UL1015 twisted pair leads.

All DENT CTs are sold individually (not in sets).

All pricing in US Dollars and applies to US customers only. Pricing does not include duties and taxes. International customers, please click here to obtain a quote.

Additional information

Weight N/A
Dimensions N/A
Current Rating

5A, 50A
CT Style

Split Core
Form

Rectangular – Hinged
Window Size

0.4" (10mm)
Current Range

0.05-10A, 0.05-100A
Accuracy Rating

±0.2% error
Lead Length

8' (2.4m)
Accuracy Grade

Revenue (Tenant Billing)
CTEP Approval

Not Applicable

Key Features

Key Features
  • Window size: 0.4″ (10mm)
  • Available in two amp ratings: 5A & 50A
  • Output is 333.3mV at rated current
  • Revenue grade performance meets or exceeds IEC 61869-2 Class 0.2, IEC 60044-1 Class 0.3, and IEEE C57.13 Class 0.3
  • 2.4 M (8′) twisted pair leads, terminated in ferrule for easy connection to DENT meters.
  • Designed for use with PowerScout & ELITEpro XC instruments
  • UL Listed
  • CE

Documents

Documents

Part Numbers

Part Numbers

All DENT CTs are sold individually (not in sets).

Description  Amp Range Part Number

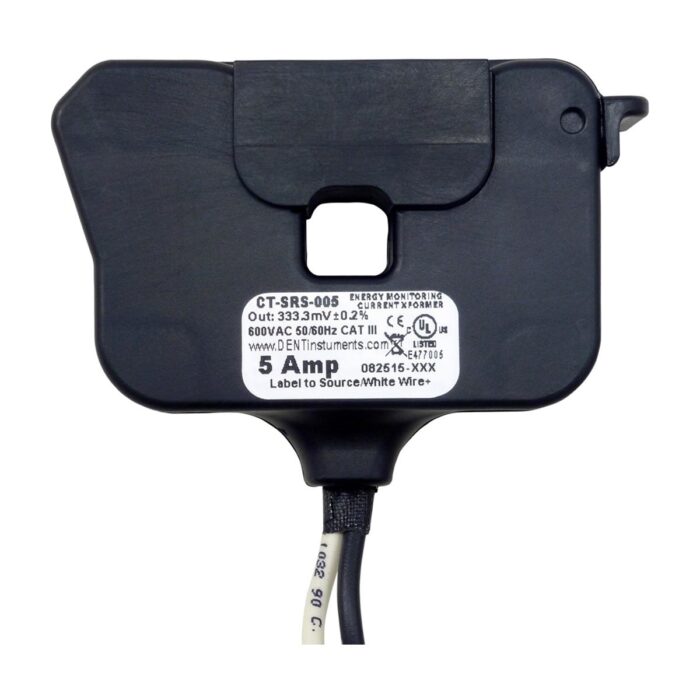

5A Revenue Grade Split Core Rectangular Hinged CT 0.05-10A CT-SRS-005-U
50A Revenue Grade Split Core Rectangular Hinged CT 0.5-100A CT-SRS-050-U
